Rib Waveguide Modes

This BeamLab demo calculates the field distributions and effective refractive indices of the eigenmodes of a rib waveguide.

BeamLab demo: rib_modes.m

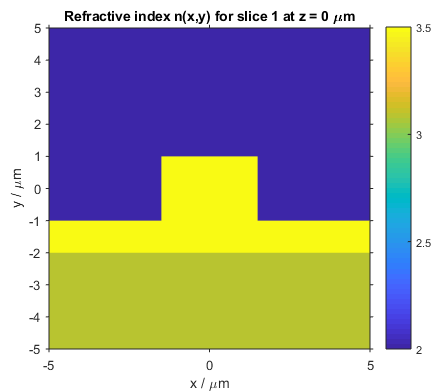

Refractive index profile of the rib waveguide

The following figures show the three field components of the first 4 low-order modes. The white lines indicate the substrate-core and core-cladding boundaries.

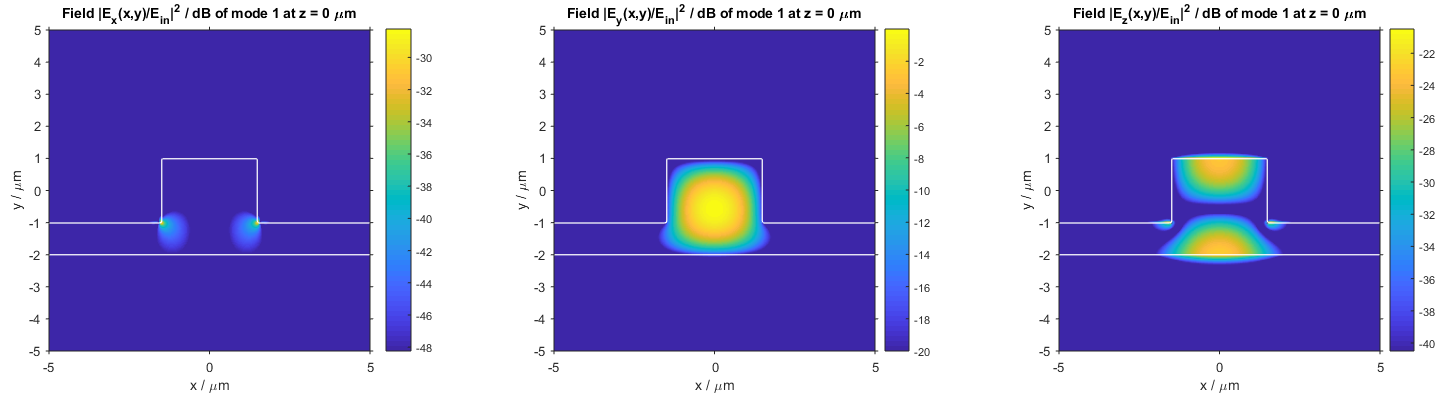

Mode 1 of the rib waveguide

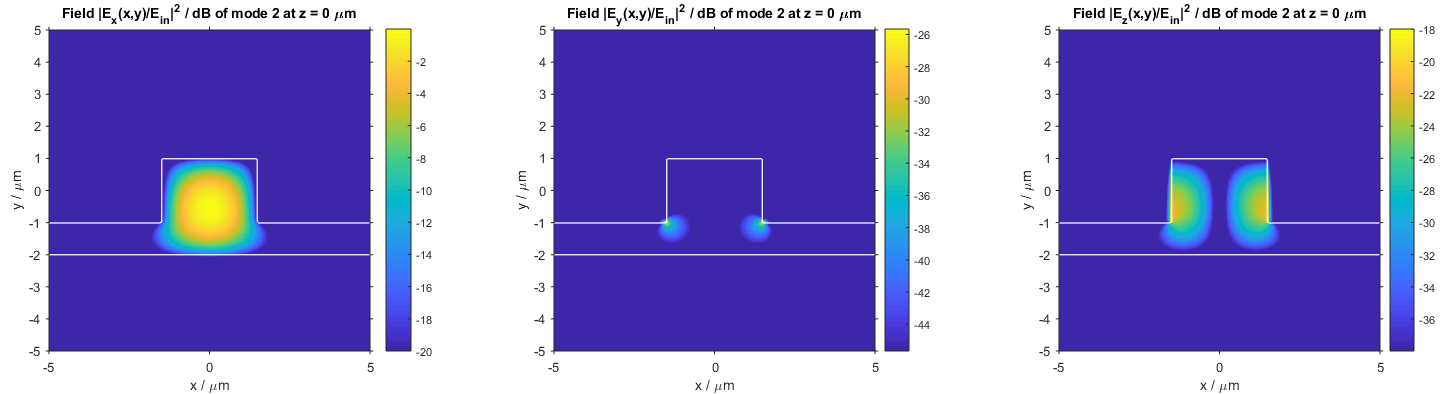

Mode 2 of the rib waveguide

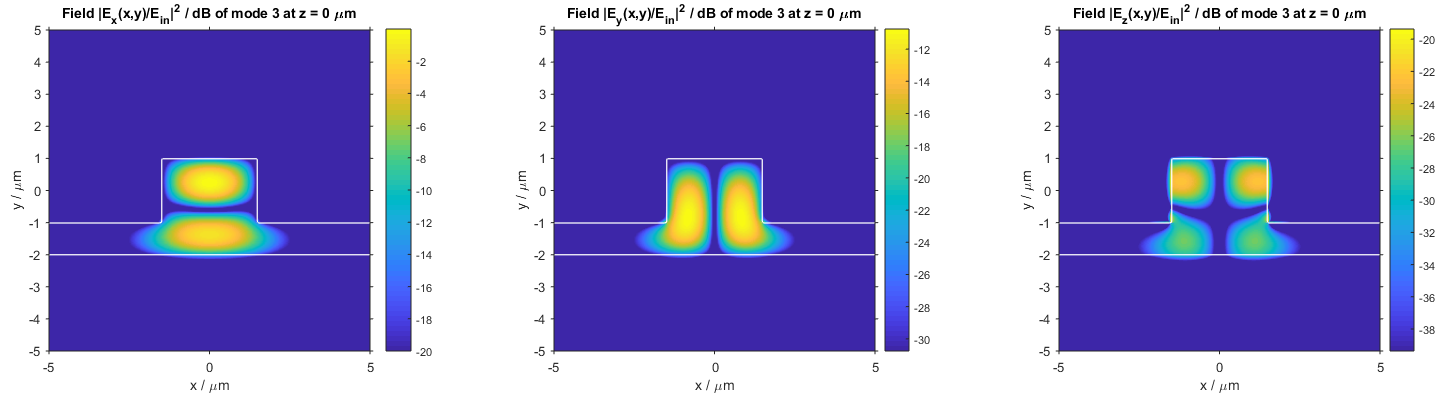

Mode 3 of the rib waveguide

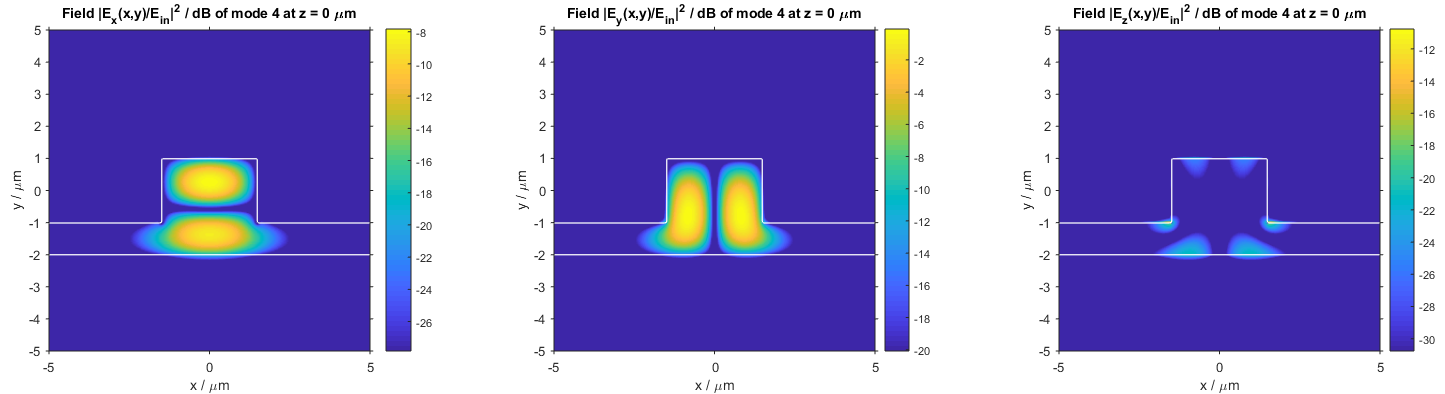

Mode 4 of the rib waveguide
