Fiber Modes

This BeamLab demo calculates the field distributions and effective refractive indices of the eigenmodes of a step-index fiber with a circular core.

BeamLab demo: fiber_modes.m

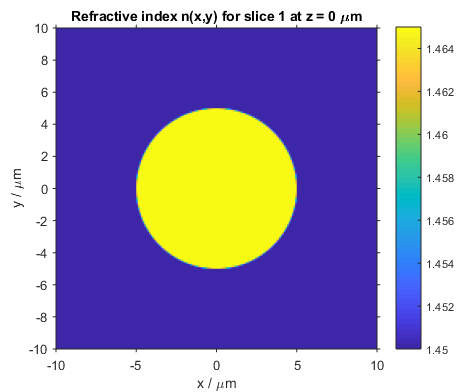

Refractive index profile of the circular step-index fiber

The following figures show the three field components of the first 4 low-order modes as field contour lines. The black lines indicate the core-cladding boundary.

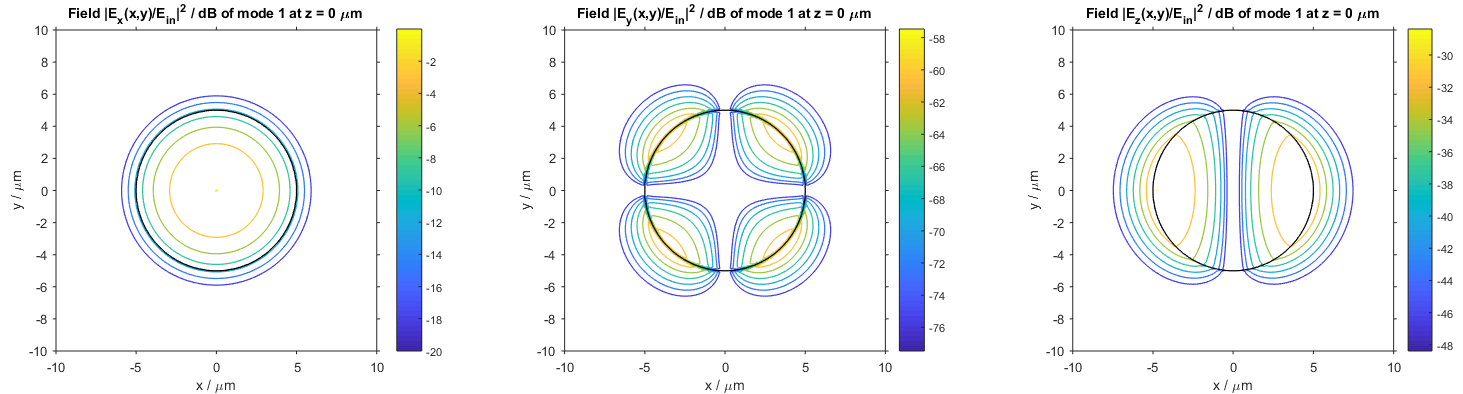

Mode 1 of the circular step-index fiber

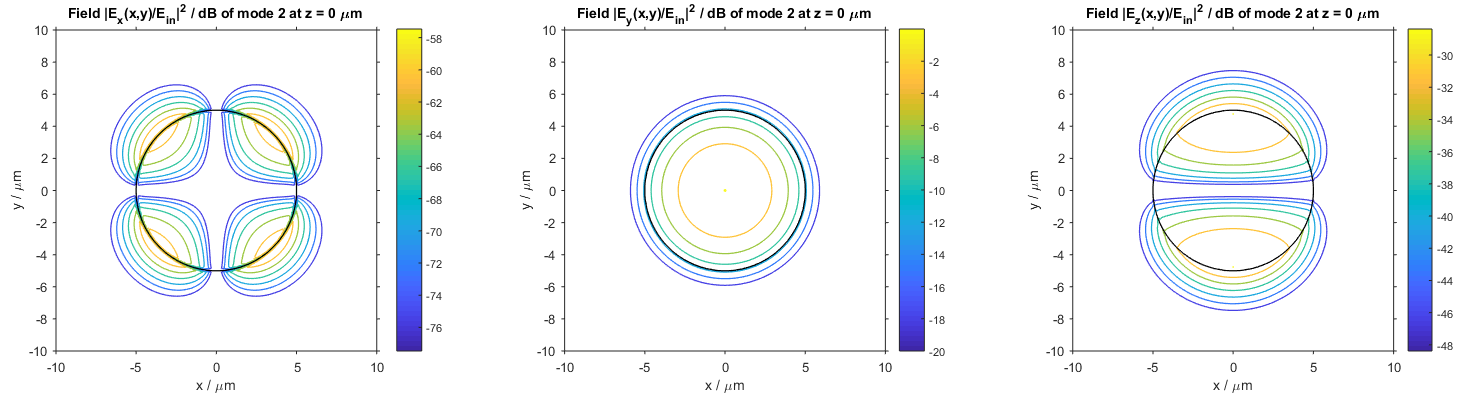

Mode 2 of the circular step-index fiber

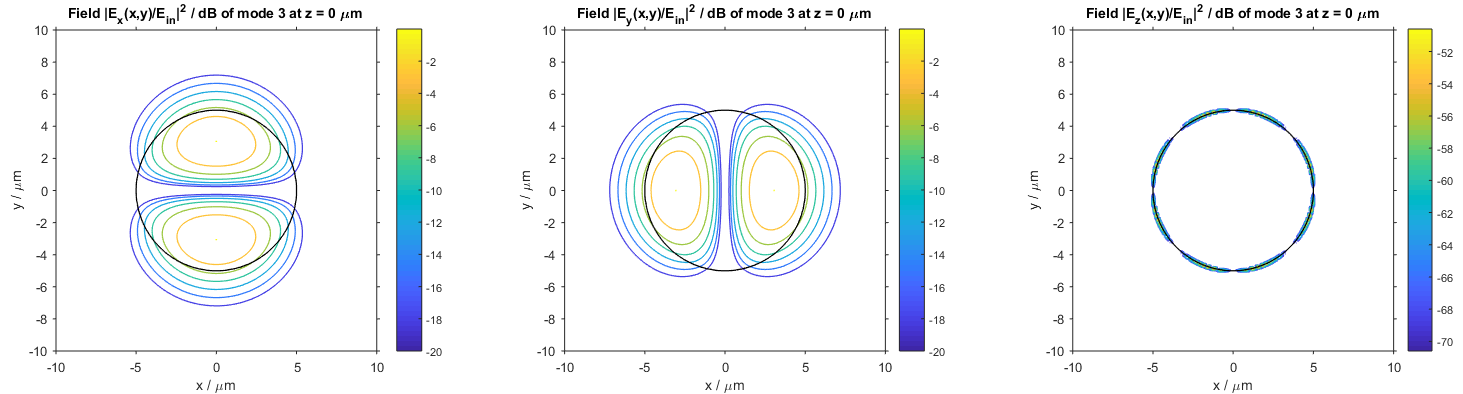

Mode 3 of the circular step-index fiber

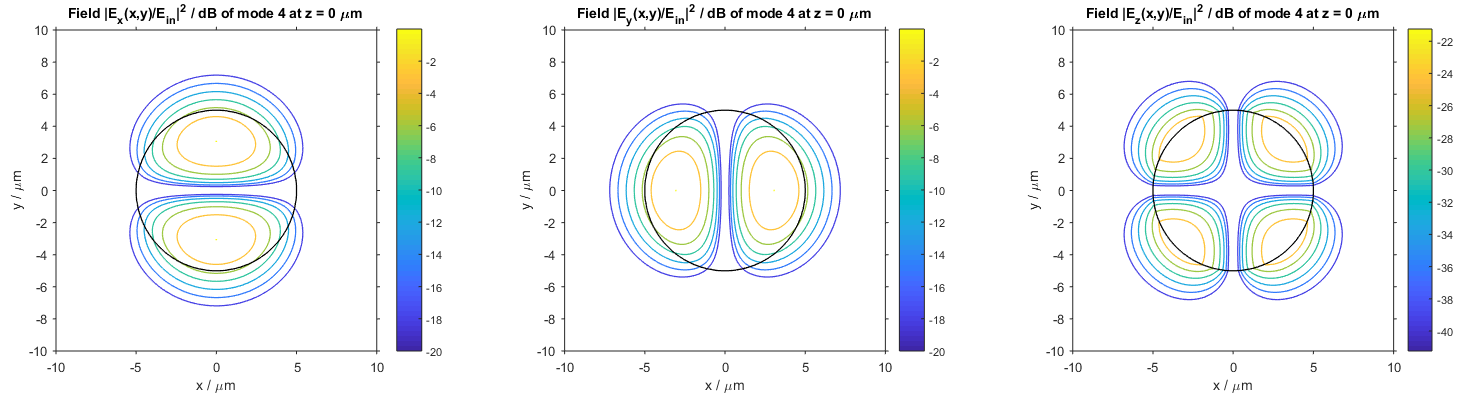

Mode 4 of the circular step-index fiber
